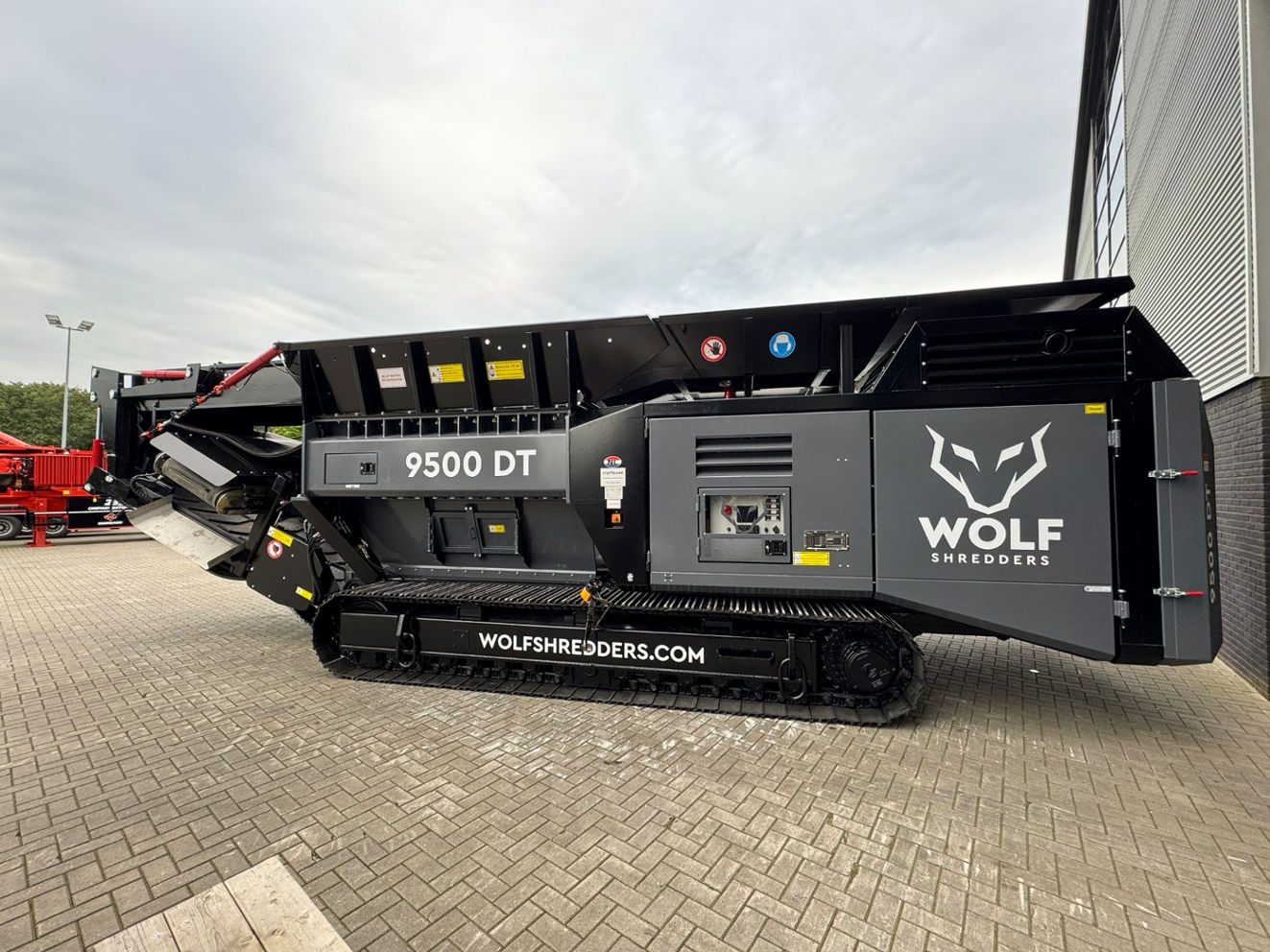

Wolf 9500 DT Powerful Mobile Shredder.
The WOLF 9500 DT is a robust and versatile mobile shredder, designed to efficiently reduce even the heaviest materials. Its tilting feed hopper ensures a constant material flow, providing optimal processing capacity.
The shredder is equipped with WOLF-rotors featuring specially curved knives that automatically reverse at maximum hydraulic pressure, allowing even the most challenging materials to be processed safely and quickly. For metal separation, the WOLF 9500 DT includes a height-adjustable magnet to efficiently remove ferrous materials.
Transport is easy thanks to the compact, foldable design, while the spacious engine compartment houses a powerful CAT C18 Stage 5 diesel engine with 765 HP, allowing simple access for maintenance. The efficient control system is remotely configurable, making operation both simple and safe.
The shredder also features a two-part discharge conveyor with steel cord layers and an extra-strong rotor housing built to withstand extreme conditions. With these features, the WOLF 9500 DT provides a reliable, powerful, and user-friendly solution for professional shredding of wood, green waste, and other heavy materials.
WOLF Shredders produces several very powerful shredders designed to process various materials, such as metal, scrap, wood and waste. These new machines are available in a variety of models and can be customized in order to meet specific needs. Please allow us to introduce these machines to you, in cooperation with WOLF Shredders.
| Feature | Specification |
| Measurements L x W x H | 11.36 x 3 x 3.22 m (transport) |
| Weight | Circa 47 ton |
| Drive | Dieselmotor CAT C18 Stage 5 765 HP |
| Working length shafts | Approx. 2500 mm |
| Diameter shafts | Approx. 950 mm |
| Rotation speed shafts | Approx. 27 rpm |
| Hydraulics | Double tandem pump |
| Conveyor belt width | Approx. 1400 mm |
| Conveyor belt height | Hydraulically adjustable dropping height up to approx. 5300 mm (33°) |
| Infeed capacity | Approx. 11 m³ |
2:47
1:00
1:05
ADVANTAGES OF Wolf 9500 DT
- Built on a robust tracked chassis
- Powered by a 765 HP CAT C18 eninge
- Extra sturdy rotor housing
- Special rotors with curved blades
- Reinforced gearbox
- Tilting feed hopper
- Easy to operate
Parts
At Stoevelaar Machinery, you can not only find machines but also parts four our equipment. Thanks to our extensive range, technical expertise and years of experience, we are able to assist you as quickly as possible.-
Most parts are available from stock, ensuring you receive assistance as quickly as possible.
Service
Stoevelaar Machinery has its own in-house service team with extensive technical experience. This means we can support you with breakdowns and technical issues. Our service team operates throughout the Benelux and Germany and is available 24/7.-
In-house workshop where maintenance, repairs and modifications are carried out professionally.
Curious about our Wolf 9500 DT shredder?
We would be pleased to show you the capabilities of this machine.
