SANY SMHW40G5

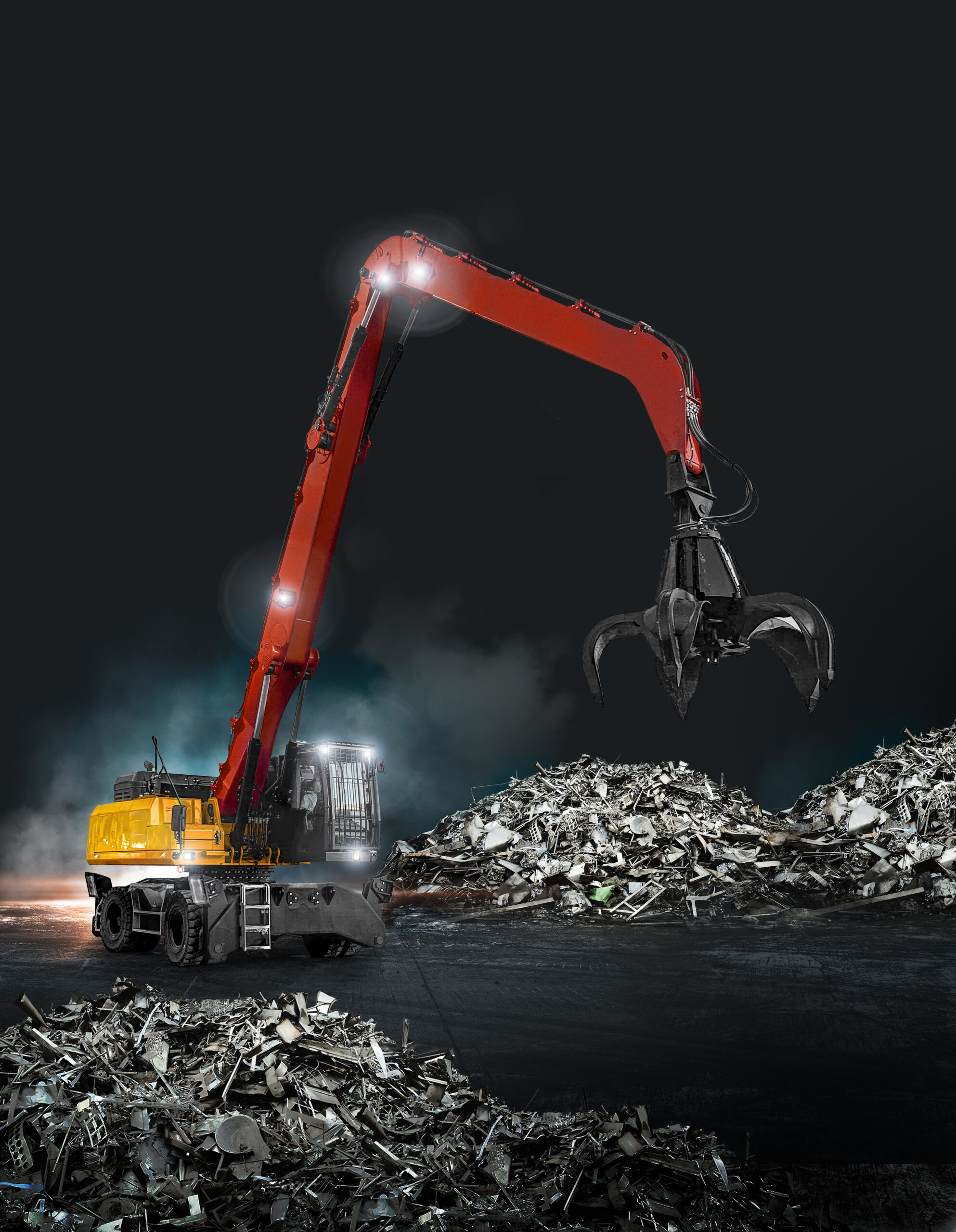

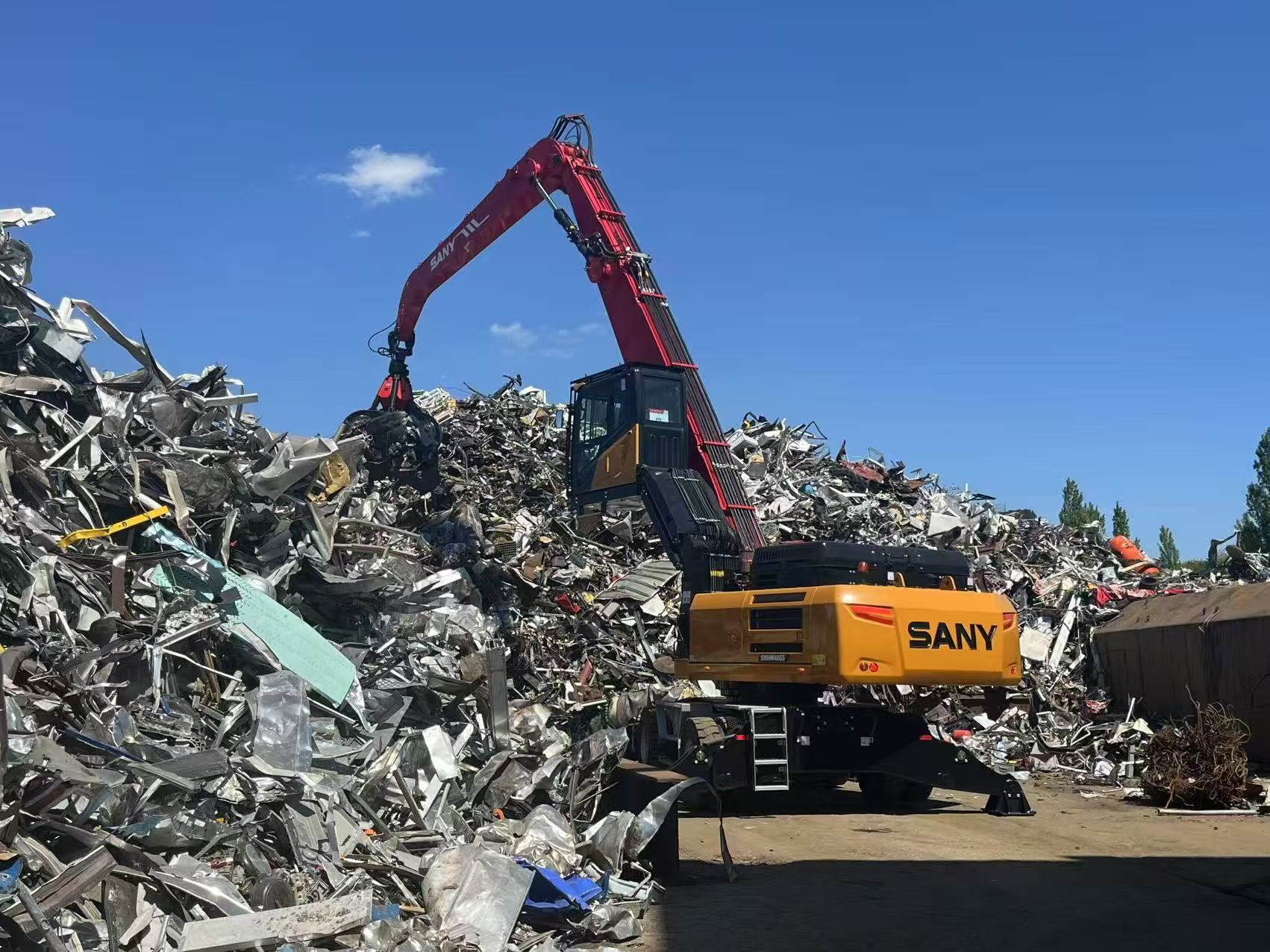

The SANY SMHW40G5 is a powerful material handler specifically designed for demanding loading, handling and recycling applications. With its robust construction, extensive working range and efficient hydraulic system, this machine delivers outstanding performance in scrap handling, recycling operations, bulk material handling, ports and transshipment facilities. The combination of power, speed and precision enables operators to process material flows efficiently and safely.

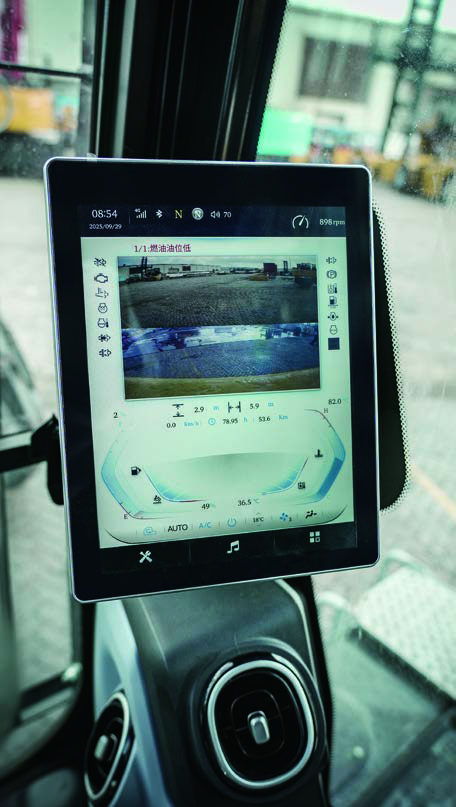

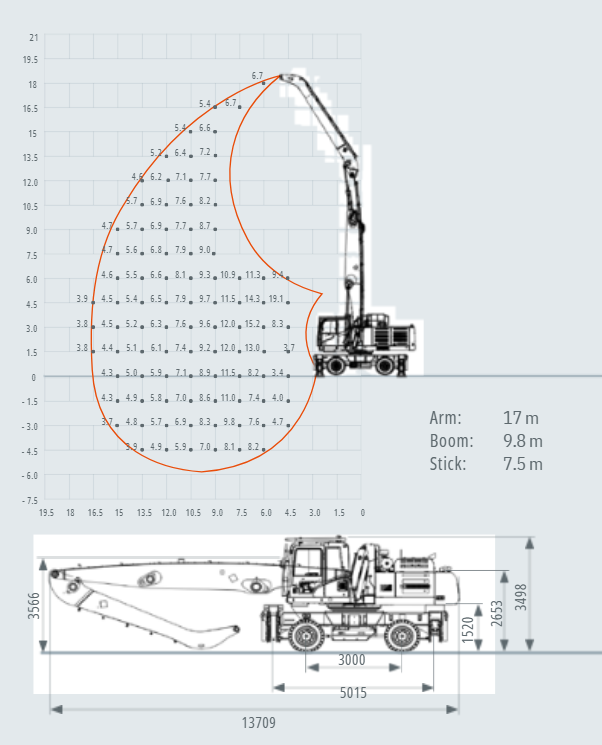

The machine is equipped with a reliable 168 kW Cummins engine, an advanced hydraulic system and a spacious elevated cab that provides excellent visibility of the working area. Thanks to a working radius of up to 16.5 metres and a working height of 18 metres, operators can easily handle large volumes of material. Intelligent machine control and precise hydraulic performance ensure maximum control during every operation.

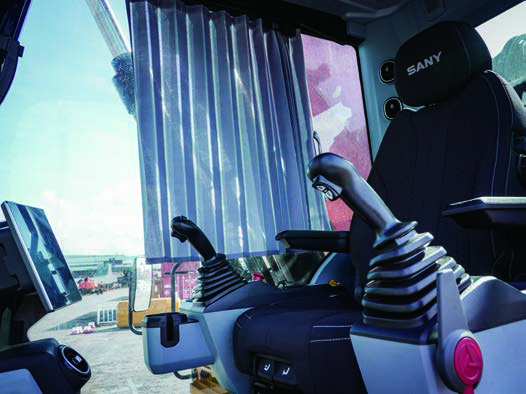

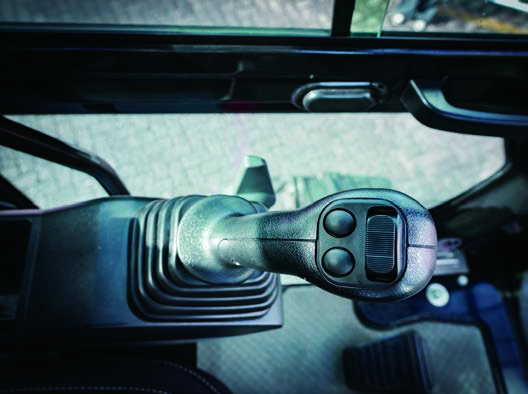

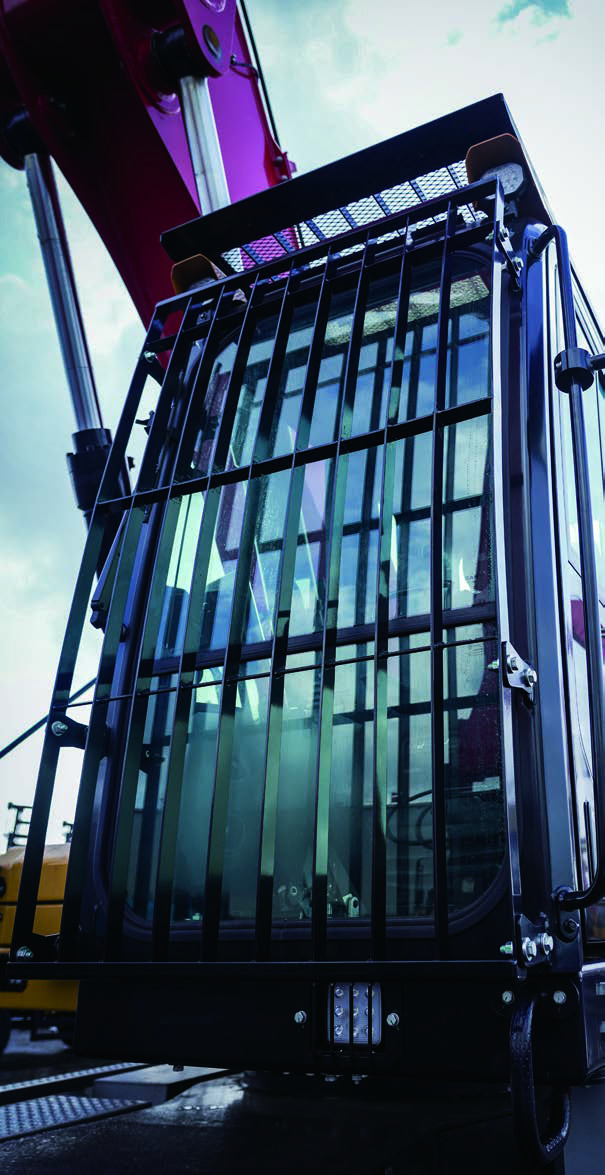

The SMHW40G5 is also designed with operator comfort and safety in mind. Its ergonomic cab, comprehensive safety features and stable undercarriage contribute to a productive and comfortable working environment throughout long working days. With an operating weight of approximately 38.5 to 40.5 tonnes, the machine is built for heavy-duty applications where reliability and continuous performance are essential.
Looking for a versatile material handler that offers high capacity, an extensive working range and low operating costs? The SANY SMHW40G5 is a future-ready solution for businesses that handle large material flows on a daily basis.
| Feature | Specification |
| Engine | |
| Engine type | CUMMINS Q6.7 (168 kW/ 2000 rpm, EU Stage V) |
| Max torque. | 1044 Nm |
| Displacement/ number of cylinders | 6.7 L/ 6 |
| Diesel fuel capacity | 560 L |
| AdBlue fluid | 50 L |
| Cabine | |
| Lifting range | 2.650 mm |
| Eye level | 5.800 mm |
| Gearbox | |
| Max. travel speed | 20 km/h |
| Climbing power | 35% |
| Gearbox type | Hydrostatic drive, 0-5 km/h, 0-20 km/h |
| Steering type | Front-wheel steering |
| Hydraulic system | |
| Hydraulic pressure | 320 bar |
| Max. oil flow | 2x 26 88 L/min |
| Filling quantity of the hydraulic system | 320 L |
Parts
At Stoevelaar Machinery, you can not only find machines but also parts for our equipment. Thanks to our extensive range, technical expertise and years of experience, we are able to assist you as quickly as possible.-
Most parts are available from stock, ensuring you receive assistance as quickly as possible.
Service
Stoevelaar Machinery has its own in-house service team with extensive technical experience. This means we can support you with breakdowns and technical issues. Our service team operates throughout the Benelux and Germany and is available 24/7.-
In-house workshop where maintenance, repairs and modifications are carried out professionally.
Curious about our SANY SMHW40G5 material handler?
We would be pleased to show you the capabilities of this machine.
