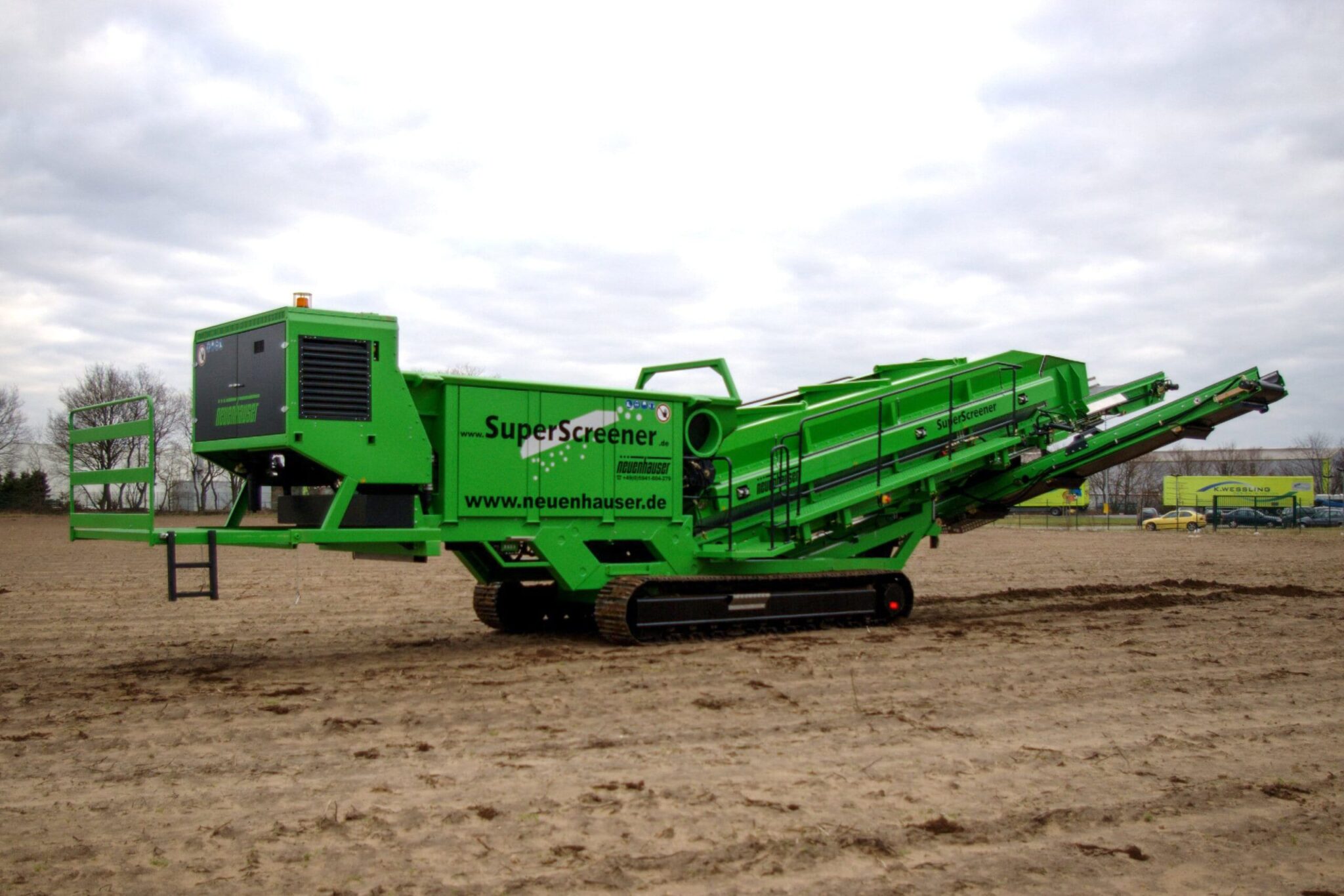

Neuenhauser 2F Star Screen Compact and Efficient.
The Neuenhauser 2F Star Screen is a compact and powerful screening solution, specially designed for applications such as biomass processing, wood recycling, and environmentally friendly soil treatment. Thanks to its robust chassis, available in both wheel- and track-mounted versions, the machine performs safely and efficiently even on challenging terrain.
With a large feed hopper, optional hopper extension, and long discharge belts with hot-dip galvanized frame (optionally extra-wide), the 2F Star Screen can handle large material flows with ease. The machine offers a maximum discharge height of 4 meters, providing flexibility for a wide range of applications.
Its modular design, the variety of stars for different applications, and optional features such as a height-adjustable dosing auger (also remotely controlled) or extendable oversize conveyor make the 2F Star Screen extremely versatile. An extendable maintenance platform, hydraulic support legs, and a walkway along the screen deck (optionally in double width) ensure safety, stability, and excellent accessibility.
The engine management system with ‘ECO’ mode optimizes fuel consumption, while simple operation and high ease of maintenance make servicing straightforward. This makes the 2F Star Screen a reliable, efficient, and environmentally friendly solution for a wide range of screening and recycling applications.
| Feature | Specification | ||
| Semi-trailer/fifth-wheel trailer for 80 km/h as per StVZO, with ABS | Seld-driving tracked chassis frame; two travel speeds | Combination version (semi-trailer and trailer) for 80 km/h as per StVZO, with ABS | |
| Total weight | Approx. 16.000 kg | Approx. 22.000 kg | Approx. 16.000 kg |
| Drive | Hybrid or diesel | Hybrid or diesel | Diesel |
| Output | Hybrid: Power unit 110 kVa, Electric motor 55 kW Diesel: diesel motor 86 kW/ 117 HP | Hybrid: Power unit 110 kVa, Electric motor 55 kW Diesel: diesel motor 86 kW/ 117 HP | - |
| Cubic capacity | 4.5 L | 4.5 L | - |
| Fuel tank | 300 L | 300 L | - |
| Hopper volume< | Up to 7.5 m³ | Up to 7.5 m³ | 5 m³ |
| Dimensions Screen deck L x W | 6900 x 1250 mm | 6900 x 1250 mm | 6900 x 1250 mm |
| Fractions Screen deck | 10 - 200 mm | 10 - 200 mm | 10 - 200 mm |
| Star size | 300, 287, 230, 216 of 170 mm | 300, 287, 230, 216 of 170 mm | 300, 287, 230, 216 of 170 mm |
| Star speed | 0 - 230 rpm | 0 - 230 rpm | 0 - 230 rpm |
3:35
1:32
Parts
At Stoevelaar Machinery, you can not only find machines but also parts four our equipment. Thanks to our extensive range, technical expertise and years of experience, we are able to assist you as quickly as possible.-
Most parts are available from stock, ensuring you receive assistance as quickly as possible.
Service
Stoevelaar Machinery has its own in-house service team with extensive technical experience. This means we can support you with breakdowns and technical issues. Our service team operates throughout the Benelux and Germany and is available 24/7.-
In-house workshop where maintenance, repairs and modifications are carried out professionally.
Curious about our Neuenhauser 2--fraction starscreen?
We would be pleased to show you the capabilities of this machine.
